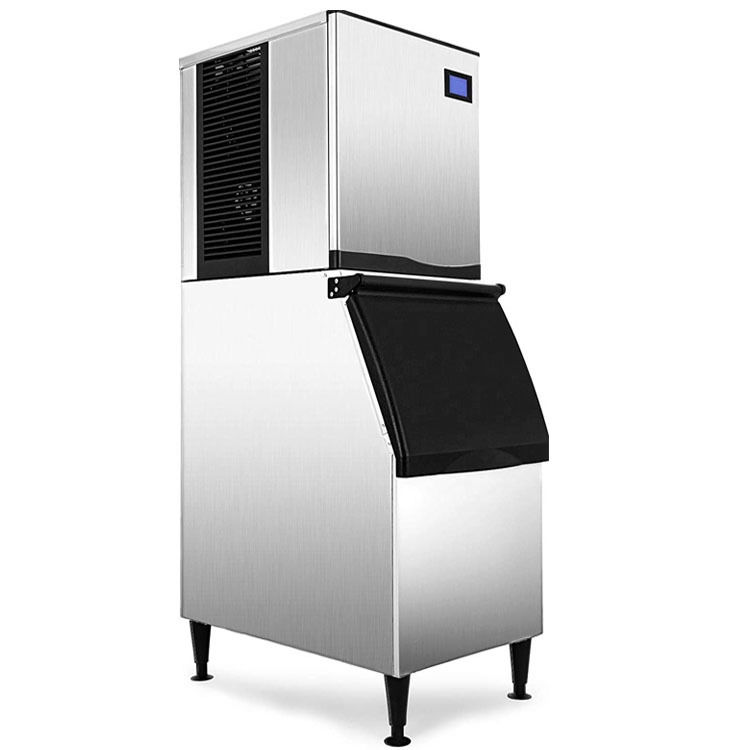

Commercial Ice Cube Machine 500kg 24h Stainless Steel 220V/380V

Détails sur le produit:

Place of Origin:	Jiangsu, China
Nom de marque:	Eternity

Conditions de paiement et expédition:

Minimum Order Quantity:	1
Prix:	$700-1,000

Contact

Description de produit détaillée

Ice shape:	Ice Cube	Voltage:	220V/380V 1P 50HZ/60HZ (customizable)
Dimension:	560640580MM	Ice storage capacity:	150KG
Power:	750W	Ice size:	222222mm (customizable)
Net weight:	83KG	Material:	Stainless steel 201 0.8
Insulation material:	PE Injection molding	Refrigerant:	R404a/R22
Ice making speed:	15-20 minutes / time	Evaporator:	Copper plated nickel ice mold
Ice grid number:	13X14	Inlet pipe:	White nylon braided tube
Ice production:	158kg/24h
Mettre en évidence:	Commercial ice cube machine 500kg , Stainless steel ice cube machine , 220V commercial ice maker

Commercial Ice Machine 500kg Ice Cube Maker

Product Specifications

Model	ETD-C350
Ice Production	158kg/24h
Ice Storage	480kg
Input Power	800W
Net Weight	150kg
Compressor	HIGHLY/COPELAND
Refrigerant	R404a/R22/R134a
Ice Size	222222mm (customizable)
Power Supply	220V/380V/415V/460V 3P/50hz/60hz

Key Features

Automatic control panel with fault code display for easy operation and monitoring
Time-controlled ice thickness adjustment (no need to open front cover)
High-efficiency scroll compressor with low noise operation
Copper electroplated ice tray for faster heat transfer and longer service life
Independent ice storage bucket with large capacity
Stainless steel construction (201 grade, 0.8mm thickness)
PE injection molded insulation material
1.5 years warranty on core components

Model Comparison

Model	Output	Input Power	Ice Storage	Refrigerant	Power Supply	Machine Size
ETD-C120	54kg/24h	400W	26kg	R404a/R134a/R22	220v/1p/50hz	530600820mm
ETD-C150	68kg/24h	420W	46kg	R404a/R134a/R22	220v/1p/50hz	530600820mm
ETD-C200	90kg/24h	600W	60kg	R404a/R134a/R22	220v/1p/50hz	530600820mm
ETD-C280	128kg/24h	650W	66kg	R404a/R134a/R22	220v/1p/50hz	6806901000mm
ETD-C300	136kg/24h	750W	150kg	R404a/R134a/R22	220v/1p/50hz	5608301560mm
ETD-C350	158kg/24h	800W	150kg	R404a/R134a/R22	220v/1p/50hz	5608301580mm
ETD-C500	227kg/24h	1180W	250kg	R404a/R134a/R22	220v/1p/50hz	7608301610mm
ETD-C700	318kg/24h	1350W	250kg	R404a/R134a/R22	220v/1p/50hz	7608301730mm
ETD-C1000	454kg/24h	1860W	250kg	R404a/R134a/R22	220v/1p/50hz	7608301780mm
ETD-C1200	544kg/24h	2150W	250kg	R404a/R134a/R22	220v/1p/50hz	7608301800mm
ETD-C1500	681kg/24h	2800W	480kg	R404a/R134a/R22	220v/1p/50hz	12409501910mm
ETD-C2000	1000kg/24h	3680W	480kg	R404a/R134a/R22	380v/3p/50hz	12409501950mm

Customizable Ice Sizes

The following ice cube sizes can be customized according to your requirements:

11x22x22mm
22x22x22mm
29x29x22mm
35x35x22mm
40x40x22mm

Maximum ice cube size: 45*45*22mm

Premium Components

Scroll Compressor

Compact size and lightweight design
Excellent stability and security with low noise operation
Long service life with high efficiency and reliability

Food Grade Ice Tray

High-quality copper electroplating with nickel plating
Safe, hygienic storage with strong corrosion resistance
Excellent heat transfer effect for efficient ice production

Danfoss Expansion Valve

Industry-leading expansion valve for higher refrigeration efficiency
Pure copper valve body for excellent thermal conductivity
Internal balance design for stable operation in small systems

Reliable Condenser

Compact footprint with capacity expansion
One-piece bending construction for leak-proof performance
Long service life with surface anti-corrosion treatment

Multi-Function English Display

One-key start/stop and ice making reservation functions
Direct fault code viewing for easy troubleshooting
Real-time display of ice making and de-icing cycles
Comprehensive status indicators for maintenance convenience

Included Accessories

Comprehensive installation accessories package
Standard filters included (upgrade options available)
Cooling fan, PC board, electric generator, dry filter
Ice storage components and water filter

Production Process

Sheet-metal Working

Design
Blanking
Laser cutting
Bending
Welding
Polishing

Assembling

Fix all accessories
Connect pipes
Weld copper pipes
Pressure testing and leak detection
Wiring
Vacuum process

Heat Preservation

Foaming
Rubber and plastic insulation

Quality Testing

Refrigerant filling
Current testing
Pressure testing
Output performance testing

Applications

Our commercial cube ice machines are ideal for:

Hotels and banquet halls
Bars and KTV establishments
Western restaurants and fast food chains
Convenience stores and cold drink shops
Any business requiring clean, hygienic ice cubes

The cube ice produced is crystal clear, clean and hygienic - offering efficient, safe, energy-saving and environmentally friendly ice production.

Frequently Asked Questions

Q1: What is the lifespan of the machine?

R1: It can be used for 8-10 years under normal circumstances. The machine should be installed in a well-ventilated environment without corrosive gases and liquids. Regular cleaning is recommended for optimal performance.

Q2: What is your payment method?

R2: We prefer T/T payments but also accept pre-T/T+L/C or 100% L/C at sight. Payments can also be made directly through Alibaba. We offer several payment options to suit your needs.

Q3: Which brands of compressors do you use?

R3: We use premium compressor brands including BITZER, Frascold, Refcomp, Copeland, and Highly.

Q4: What type of refrigerant are you using?

R4: Refrigerant type depends on the model, with R22, R404A, and R507A being standard options. We can accommodate special refrigerant requirements for specific countries.

Q5: Do I need to add refrigerant and refrigeration oil to the machine?

R5: No, we add the correct amount of refrigerant and refrigerating oil before shipment. You only need to connect water and electricity to begin operation.
